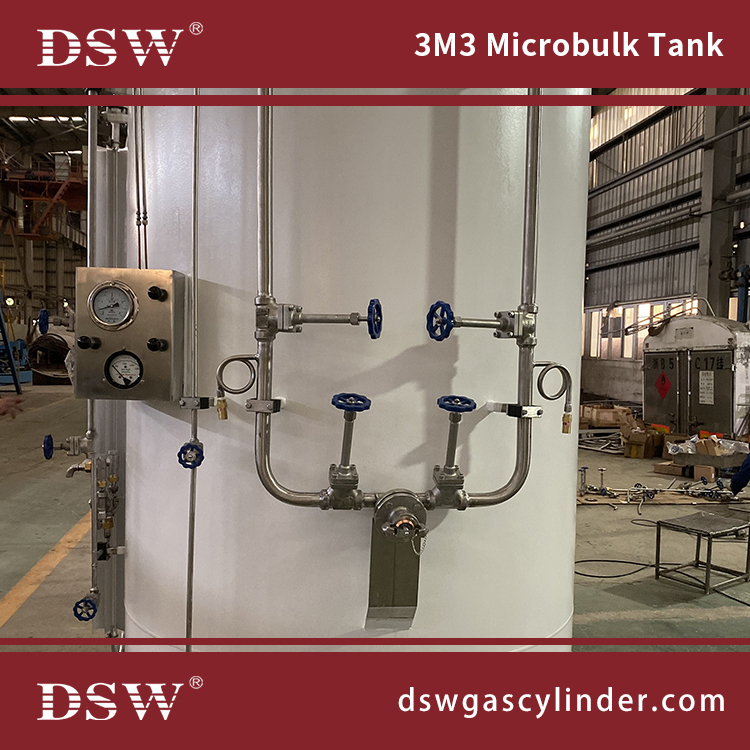

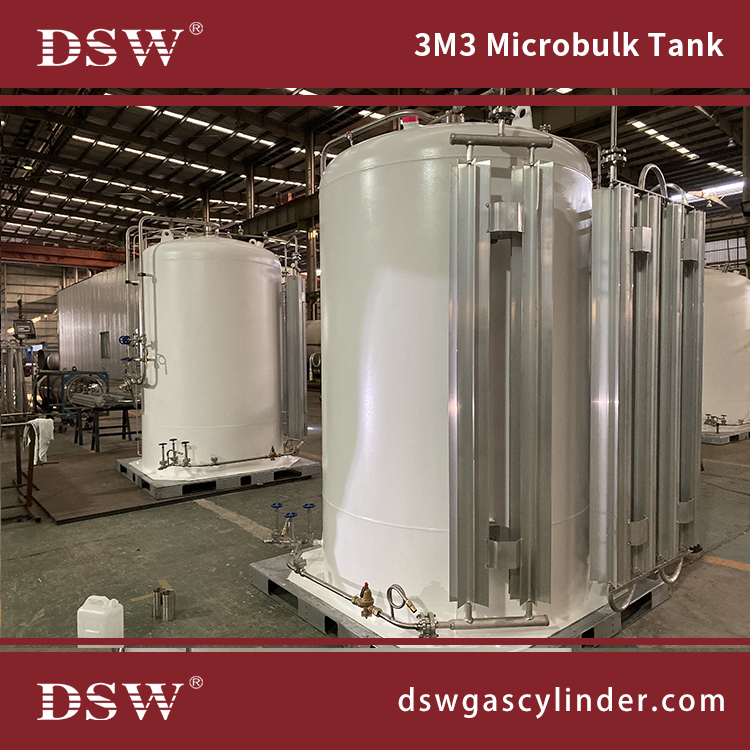

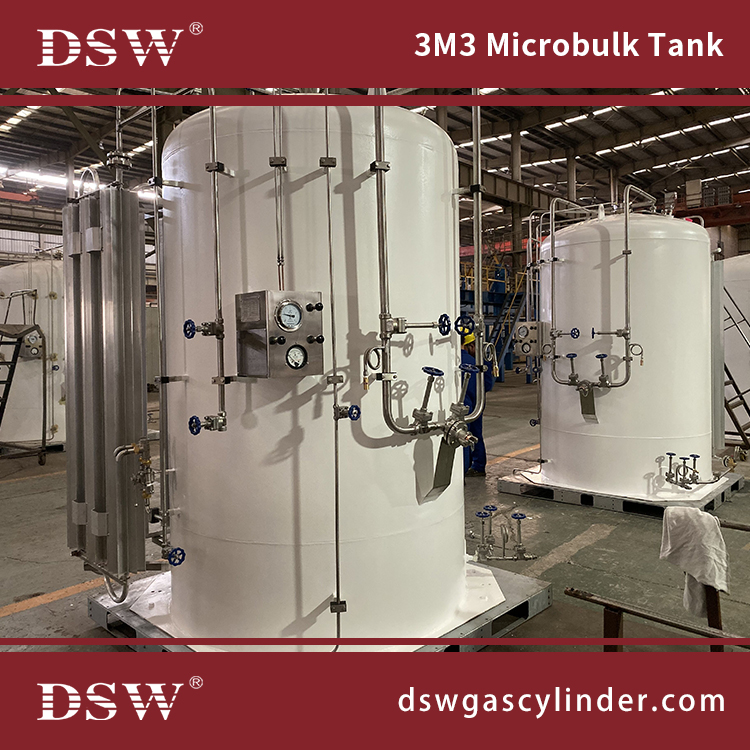

3M3 Microbulk Tank
MicroBulk tanks provide secure on-site storage of cryogenic liquids to increase operational safety, quality, and efficiency.
The product can be utilized in either liquid or gaseous form for applications as varied as food processing and freezing, high-pressure laser cutting, welding, specimen storage, and laboratory applications.
A micro bulk tank is essentially a bulk storage system in miniature. It fills and stores dangerous chemicals such as LO2, LAr, LN2, LCO2, and LNG.
The maximum working pressures available are 0.8Mpa, 1.6Mpa, 2.5Mpa and 3.5Mpa; the nominal volumes available are 1M3, 2M3, 3M3,5M3, 7.5M3 etc.
DSW, a renowned global supplier, designs and manufactures cutting-edge Cryogenic Microbulk and Nitrogen Microbulk systems.
Our solutions have revolutionized the industrial gas supply industry by offering compact sizes, advanced safety features, and efficient cryogenic gas delivery.
Specification

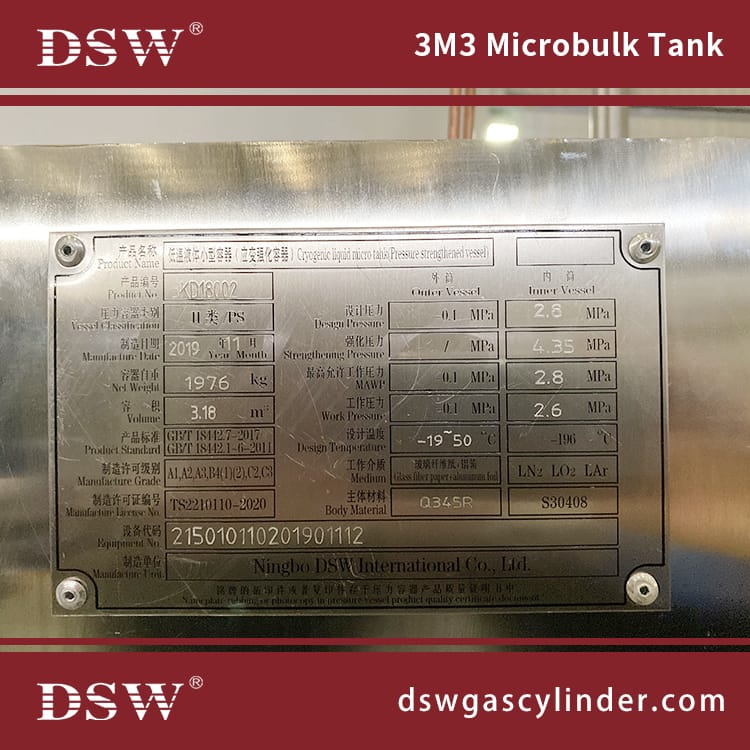

| Model:CDLS-3/3.4 Insulation type:Multi-layer 3M3 Microbulk Tank | |||
| NO | Items | Inner vessel | Outer vessel |
| 1 | Design pressure MPa | 3.5 | -0.1(outer) |
| 2 | Working pressure MPa | 3.4 | -0.1(outer) |
| 3 | MAWP MPa | 3.5 | / |
| 4 | Design temperature ºC | -196 | -19~50 |
| 5 | Working temperature ºC | ≥-196 | normal |
| 6 | Strength pressure MPa | 5.4 | HLD |
| 7 | G. Vol m3 | 3.18 | 1.83(interlayer) |
| 8 | E. Vol m3 | 3 | / |
| 9 | Medium | LIN/LOX/LAR | Multi-layer |
| 10 | Main material | S30408 | S30408 |
| 11 | Treatment | Pickling and passivation | Sanding (Sa2.5)and coating |
| 12 | Corrosion allowance mm | 0 | 0 |
| 13 | Joint efficiency | 1 | 0.85 |
| 14 | Filling rate | 95% | / |
| 15 | Static evaporation %/d | LN2≤0.6; LO2≤0.4; LAR≤0.42 | |
| 16 | Seal off vacuum degree Pa | ≤0.01 | |
| 17 | Interlayer seal leakage | ≤2×10-7 | |
| 18 | Diameter mm | Φ1400 | Φ1604 |
| 19 | External Dimensions mm | Φ1604×2945 | |
| 20 | Type | Vertical | |
| 21 | Tare weight Kg | ~2146 | |
| 22 | Fully loading weight Kg | 6376(LAR); | |
| 23 | Design service life | 15years | |
| 24 | Open pressure for safety valve | 3.45Mpa | |
| 25 | Medium max density kg/m3 | 1410(LAR) | |
| 26 | Thickness of coat um | / | |
| 27 | Ex-work pressure of inner | 0.03Mpa | |
| 28 | Design code | GB | |
Micro Bulk tanks for liquid gas
Cryogenic bulk tanks are used to store and transport different liquefied gases.
These Mini tanks typically consist of an inner and an outer tank of high-quality stainless steel with polyurethane foam insulation in between.
Applications
MicroBulk systems find applications in various industries, including:
-
- Laser cutting
- Metal processing and fabrication
- Precision welding
- Laboratory and research
- Medical oxygen
- Food and beverage packaging/preservation
- Electronics manufacture and testing
- Inert purging and blanketing
