Medical Oxygen Regulators /DSW – Supplier & Exporter

DSW oxygen regulators are among the premier models available today, designed to deliver maximum safety, reliability, durability, and precision flow.
Constructed of high-strength 360 brass with internal high-pressure flow components for added strength and safety operation, DSW regulators feature laser etching with corrosion-resistant chrome plating finishes for extra protection from the elements.

Oxygen Tank Regulator size chart

Oxygen Flowmeter Regulators

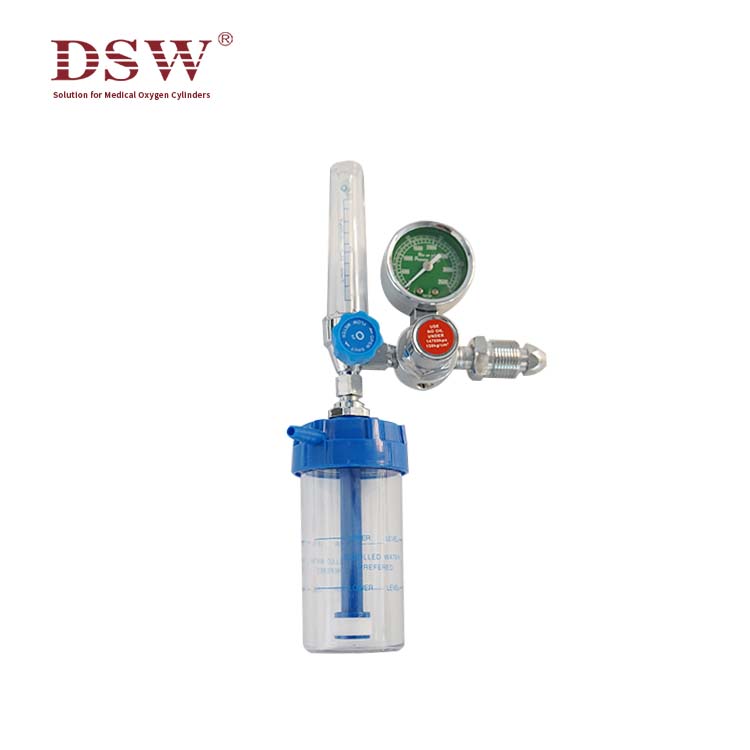

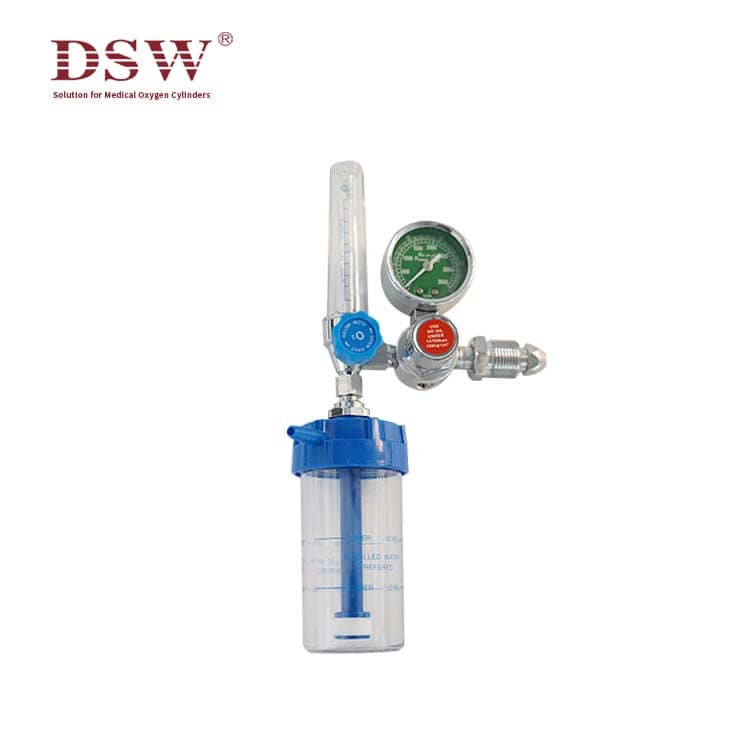

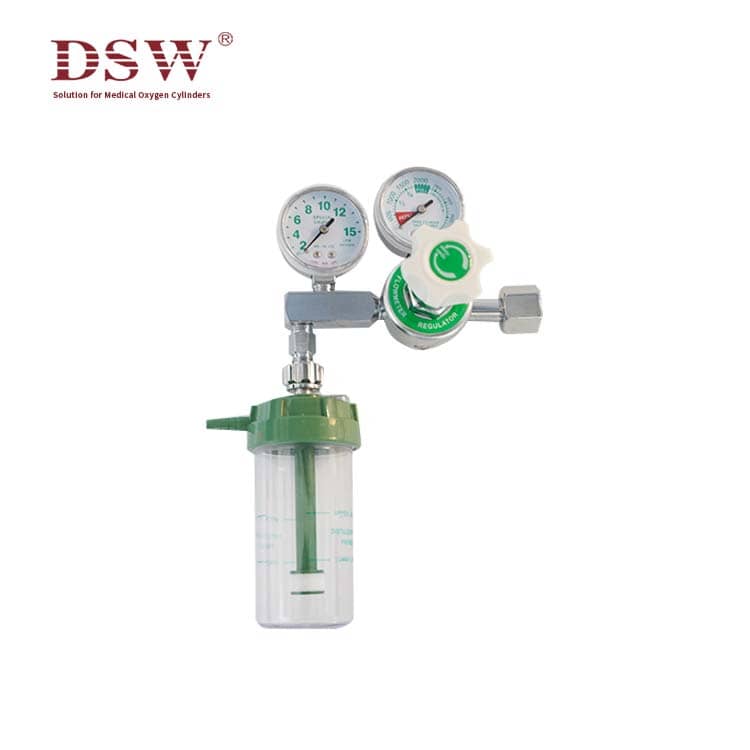

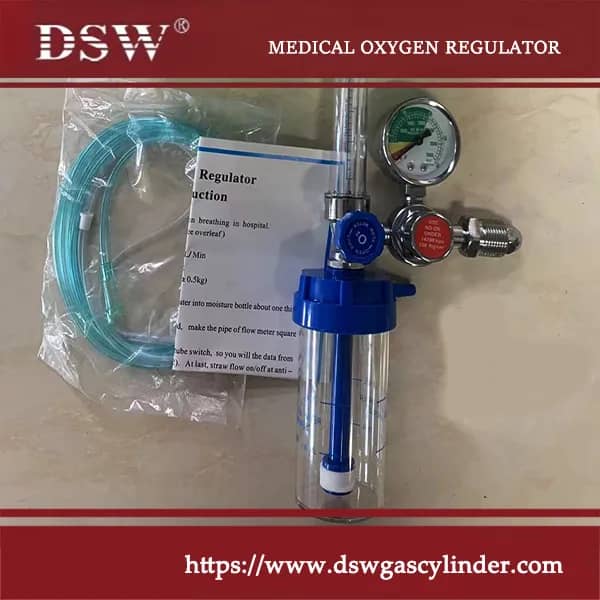

The Medical Oxygen Regulator

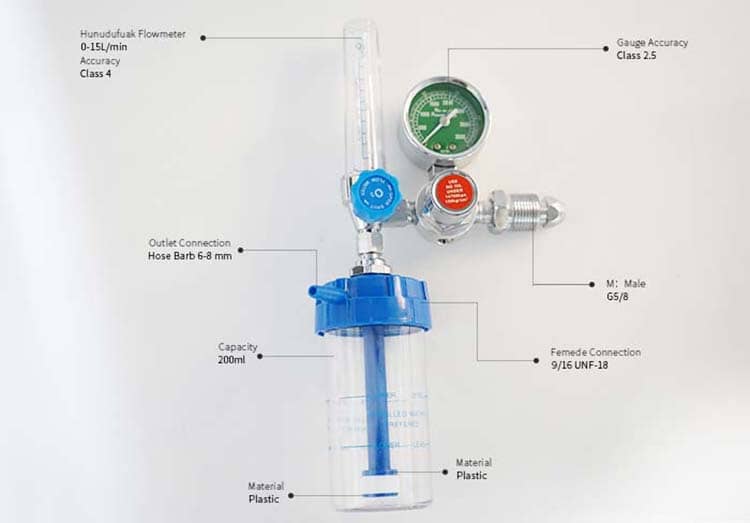

is a medical device for oxygen or medical air inhalation of first-aid and hypoxic patients in the hospital, including an oxygen flowmeter and a medical air flowmeter. It mainly consists of a gas pressure gauge, pressure reducer, safety valve, flow tube, flow control valve, humidification bottle, and other components.

The functions of oxygen and acetylene regulator:
Reduce the pressure cylinder to a working pressure that can be delivered at the point of an active application.
Adjust the pressure to be delivered to the point of application, depending on the need.
Acting as a safety device, regulators generally use a check valve to prevent flashbacks between the hose and regulators.

The pressure of the gases in the oxygen and acetylene cylinders is very high.
The pressure in the oxygen cylinder may be as high as 2200 psi (15169 kPa).
The working pressure of oxygen is around one psi to 25 psi (6.9 kPa to 172.4 kPa).
The regulator performs the function of reducing this pressure from cylinder pressure to working pressure.
Likewise, the regulator on the acetylene cylinder reduces the pressure from cylinder pressure, which may be as high as 250 psi (1724 kPa), to a working pressure of 15 psi (103 kPa) maximum.
