Ideal for precision gas applications that require high pressure.
air compressors in all sizes and for all applications
DSW Diaphragm compressors are the ideal choice for hydrogen recovery and fueling stations. Our hydrogen compressors are designed and manufactured in-house using static metal seals that ensure safety & reliability up to 7,000 psig & 10,000 psig.

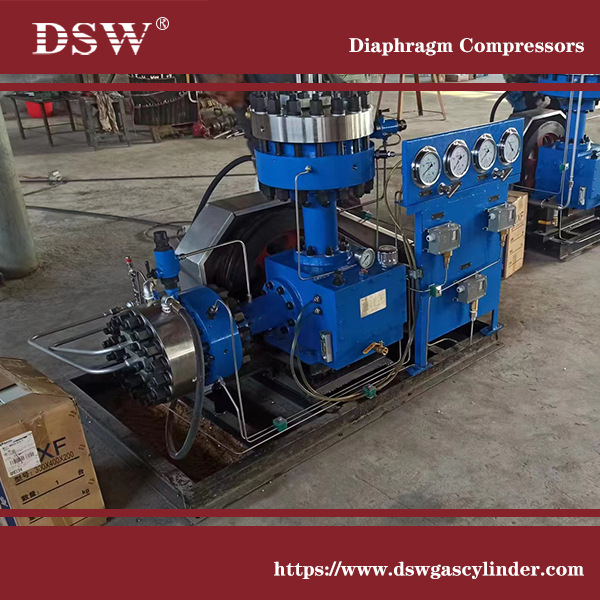

What is a reciprocating compressor?
A reciprocating compressor or piston compressor is a positive-displacement compressor that uses pistons driven by a crankshaft to deliver gases at high pressure. Pressures of up to 5,000 PSIG are commonly produced by multistage reciprocating compressors.

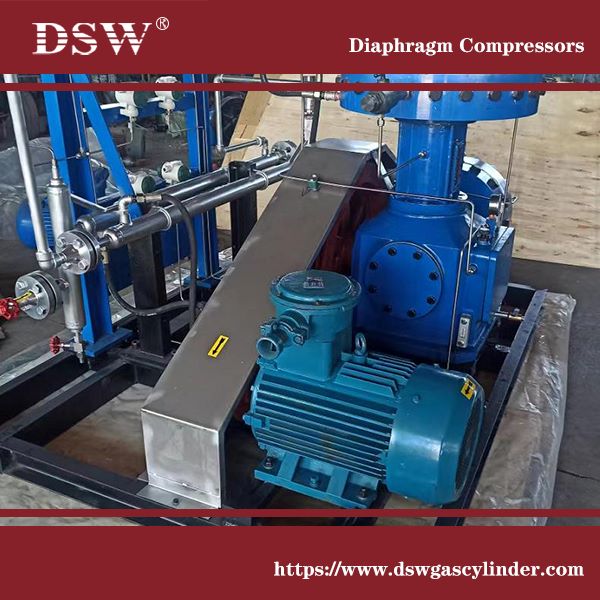

Air compressor diaphragm feature:
Leak Free, Oil Free design
Contamination Free Compression
Corrosion Resistance
High Compression Ratios
High Reliability
Safety
Automatic Leak Detection

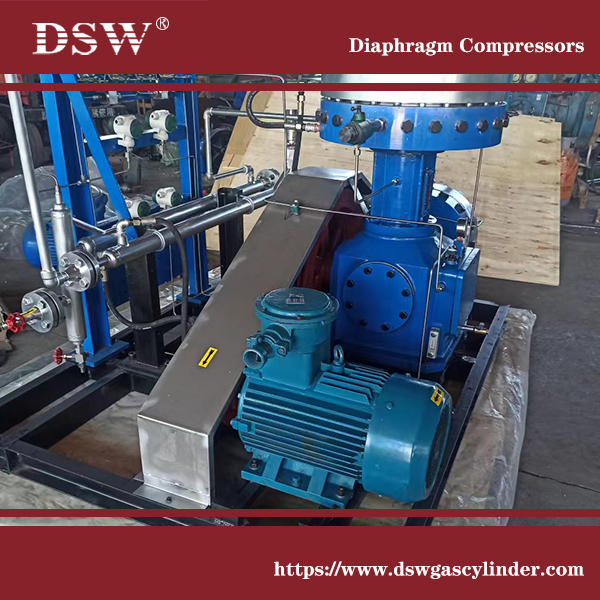

Our diaphragm compressors are designed to meet our customer’s specifications, and we ensure that they do so by carefully inspecting every component. Our staff has over 20 years of experience in high-pressure and compression applications. All our compressors are maintained and troubleshooted by us. We can even improve and customize existing systems. DSW proudly offers our customers the best quality systems and support for any application. Our highly-trained and experienced engineers will always be available to meet customer specifications and ensure their satisfaction.

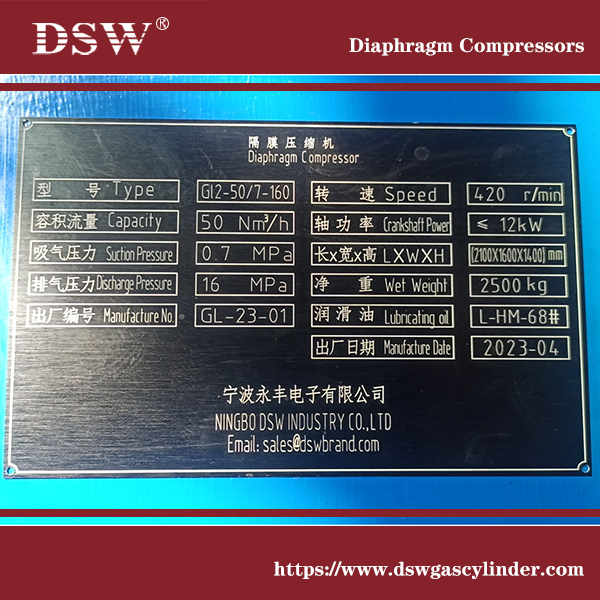

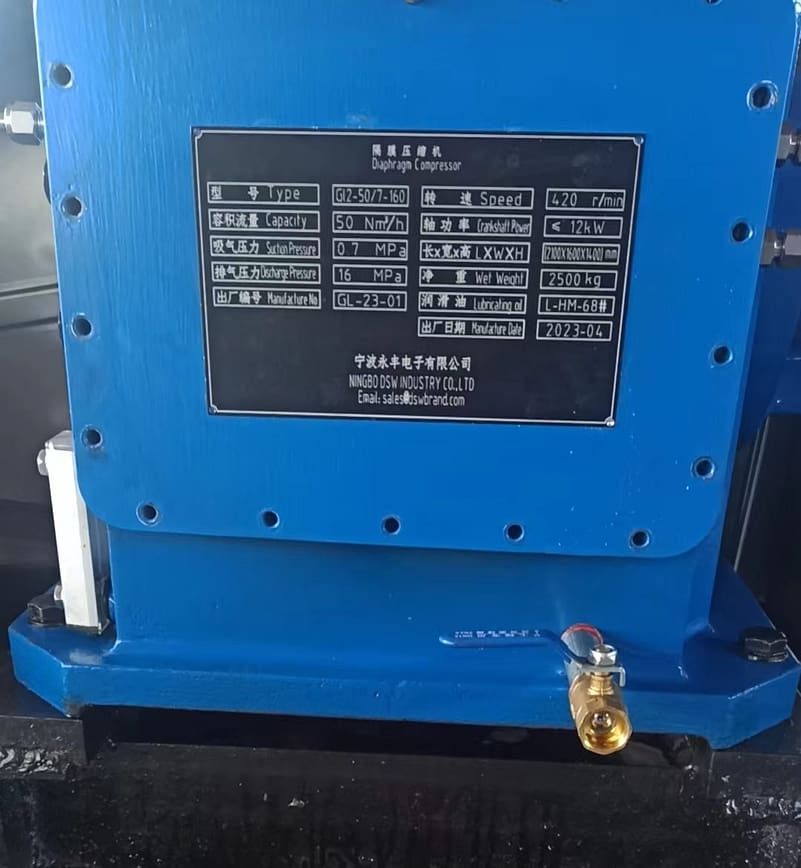

Diaphragm Compressor specification
| positive-displacement compressor | ||||
| medium | CH4、C2H4 | 数量 | 1 | |
| inlet thread MPa（G） | 0.7 | air inlet temperature ℃ | 20 | |
| discharge pressure Mpa（G） | 16 | 160 | ||
| discharge temperature (before cooling) | ||||
| · | ||||
| ℃ | ||||
| volume flow | 50 | discharge temperature (after cooling)℃ | ≤45 | |
| Nm3/h | ||||
| model | DSWG3V-50/7-160 | compressor stage | 2 | |
| type | V | cylinder qty | 2 | |
| cylinder size (mm) | piston travel (mm) | |||
| speed of crankshaft r/min | 400 | voltage V | 380 | |
| cooling way | Water 水冷 | cooling water flow t/h | 1.6 | |
| axle power KW | 电机转速 motor speed r/min | |||
| motor | 15KW，380V | |||
| size:mmXmmXmm | 2000X1550X1700 | weight (Tons) | 2.2ton | |
| kind of drive | ||||
| Belt drive (✔) straight league (✖) | ||||
| · | ||||
| The material in contact with the gas | carbon steel（45、20） | |||
| Cylinder head, pipe | ||||

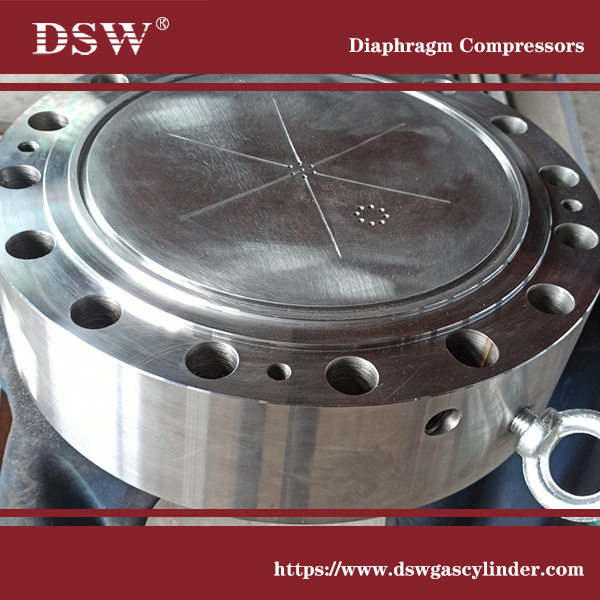

| diaphragm | 00Cr15Ni5 | |||
| gas valve | stainless steel | |||
Reciprocating Compressors can be used for ultra-pure, toxic, poisonous, and flammable gases.
Toxic gases such as Carbon Monoxide
Explosive gases such as Hydrogen, Ethylene, and Methane
Reactive gases such as Oxygen and Fluorine
Expensive gases such as Neon, Krypton, and Xenon
Radioactive gases such as Tritium
High Purity gases such as Nitrogen, Helium, Argon, etc.
Diaphragm Compressors, also called Membrane Compressors, are used for compressing gases with high purity and where leakage is not allowed.
