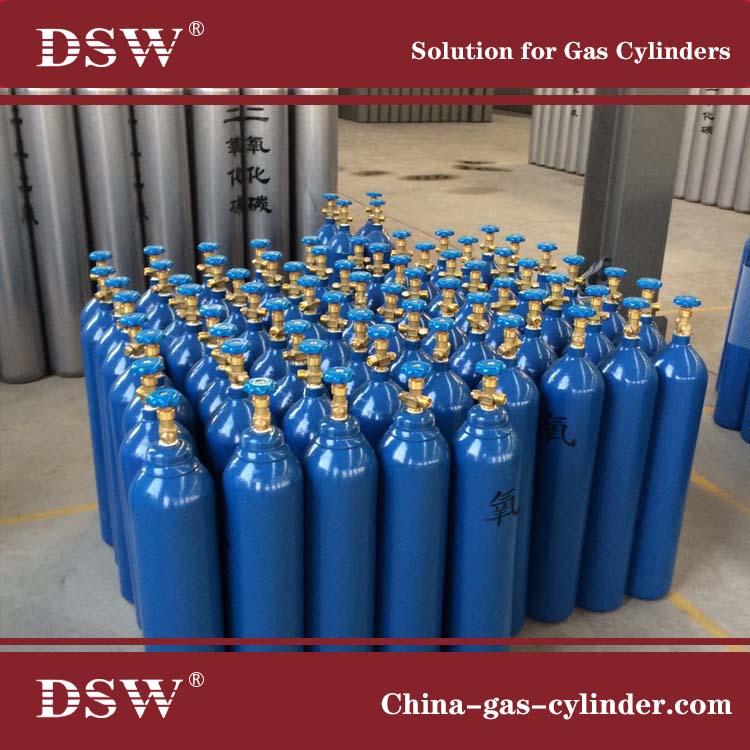

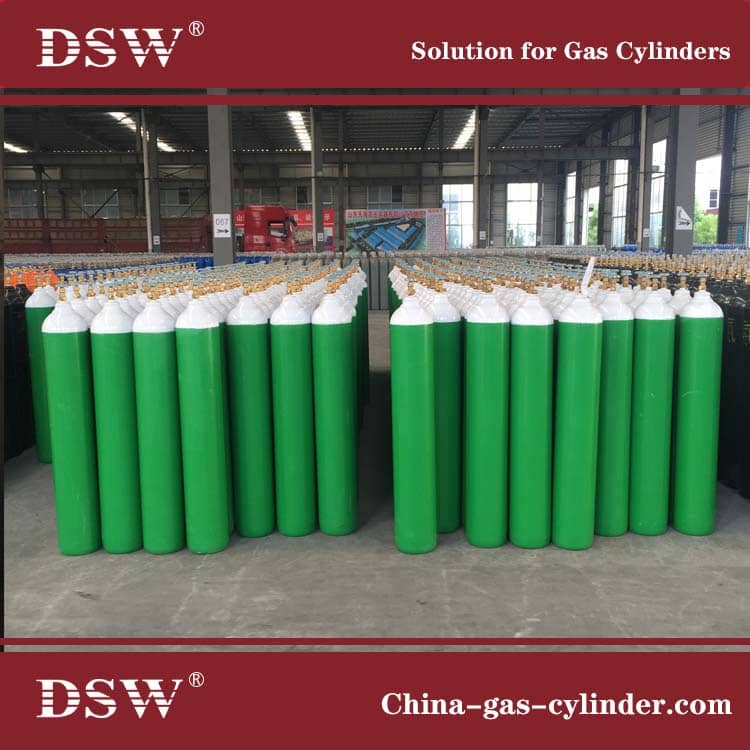

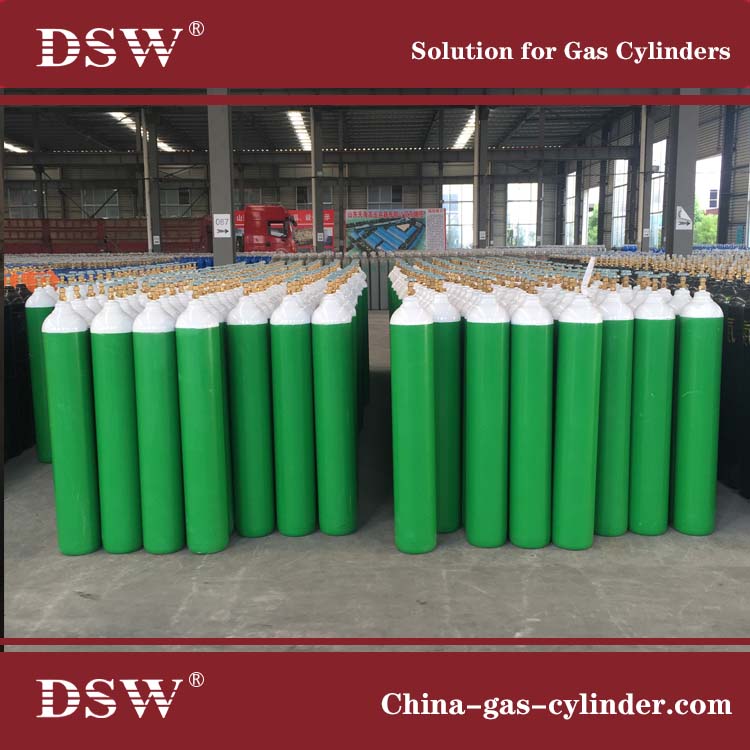

EN1964-1 Gas Cylinders
BS EN 1964-1 is the gas cylinder standard issued by British Standards Institution for Transportable Gas Cylinders with Water capacities from 0.51 Litre up to and including 150 Litres;
Part 1 specifies refillable transportable seamless steel gas cylinders of this size with an Rm Value less than 1100 MPa (refillable transportable seamless steel gas cylinders of water capacities between 0.5-2L and 150L capacity).
EN1964-1 Gas Cylinders Sizes
| Model | Outside Diameter | Water Capacity |
Height (W/O Valve) |
N.W.(W/O Valve&Cap) | Service Pressure | Wall Thickness | Material |
| (mm) | (L) | (mm) | (Kg) | (Bar) | (mm) | ||
| EN140-3.4-150 | 140(TPED) | 3.4 | 321 | 5.8 | 150 | 4.1 | 37Mn |
| EN140-3.6-150 | 3.6 | 335 | 6 | ||||
| EN140-4-150 | 4 | 365 | 6.4 | ||||
| EN140-5-150 | 5 | 440 | 7.6 | ||||
| EN140-6-150 | 6 | 515 | 8.8 | ||||
| EN140-6.3-150 | 6.3 | 545 | 9.2 | ||||
| EN140-6.5-150 | 6.5 | 557 | 9.4 | ||||
| EN140-6.7-150 | 6.7 | 567 | 9.5 | ||||
| EN140-7-150 | 7 | 595 | 9.9 | ||||
| EN140-7.5-150 | 7.5 | 632 | 10.5 | ||||
| EN140-8-150 | 8 | 665 | 11 | ||||
| EN140-9-150 | 9 | 745 | 12.2 | ||||
| EN140-10-150 | 10 | 830 | 13.5 | ||||
| EN140-11-150 | 11 | 885 | 14.3 | ||||
| EN140-13.4-150 | 13.4 | 1070 | 17.1 | ||||
| EN140-14-150 | 14 | 1115 | 17.7 | ||||
| EN159-4-150 | 159(TPED) | 4 | 320 | 6.8 | 150 | 4.7 | 37Mn |
| EN159-4.5-150 | 4.5 | 350 | 7.3 | ||||
| EN159-7-150 | 7 | 495 | 9.8 | ||||
| EN159-8-150 | 8 | 554 | 10.8 | ||||
| EN159-9-150 | 9 | 610 | 11.7 | ||||
| EN159-10-150 | 10 | 665 | 12.7 | ||||
| EN159-11-150 | 11 | 722 | 13.7 | ||||
| EN159-12-150 | 12 | 790 | 14.8 | ||||
| EN159-12.5-150 | 12.5 | 802 | 15 | ||||
| EN159-13-150 | 13 | 833 | 15.6 | ||||
| EN159-13.5-150 | 13.4 | 855 | 16 | ||||
| EN159-13.4-150 | 13.5 | 866 | 16.1 | ||||
| EN159-13.7-150 | 13.7 | 878 | 16.3 | ||||
| EN159-14-150 | 14 | 890 | 16.5 | ||||
| EN159-15-150 | 15 | 945 | 17.5 | ||||
| EN159-16-150 | 16 | 1000 | 18.4 |
ISO 9809-1:2010 specifies minimum requirements for the material, design, construction and workmanship, manufacturing processes, examination, and testing at the manufacture of refillable quenched and tempered seamless steel gas cylinders of water capacities from 0,5 l up to and including 150 l for compressed, liquefied and dissolved gases.
