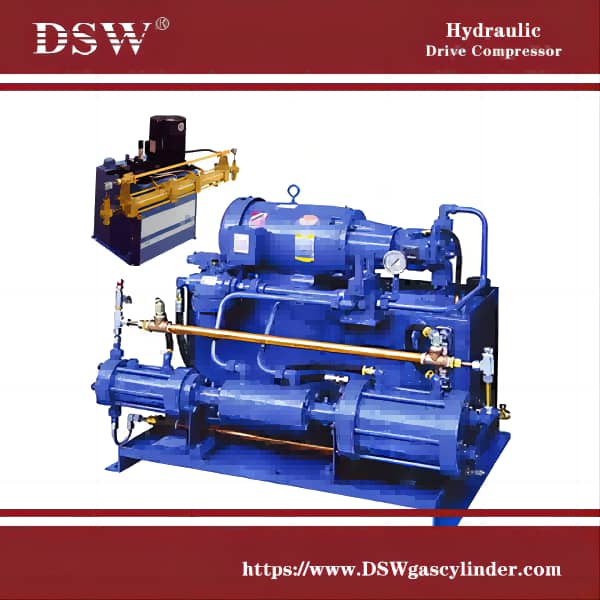

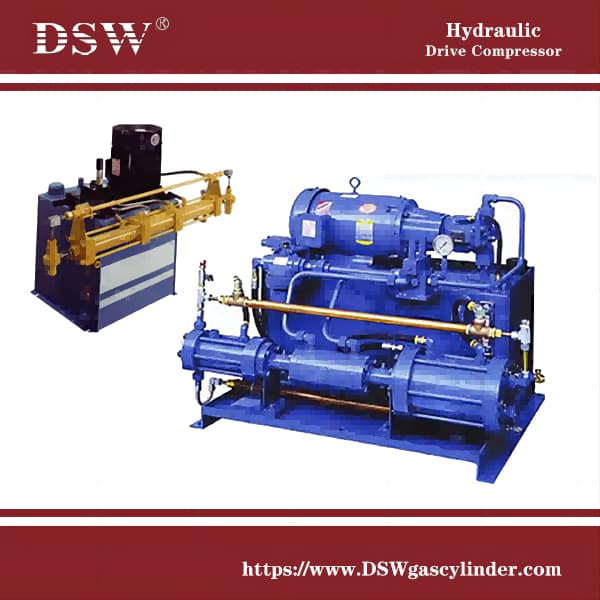

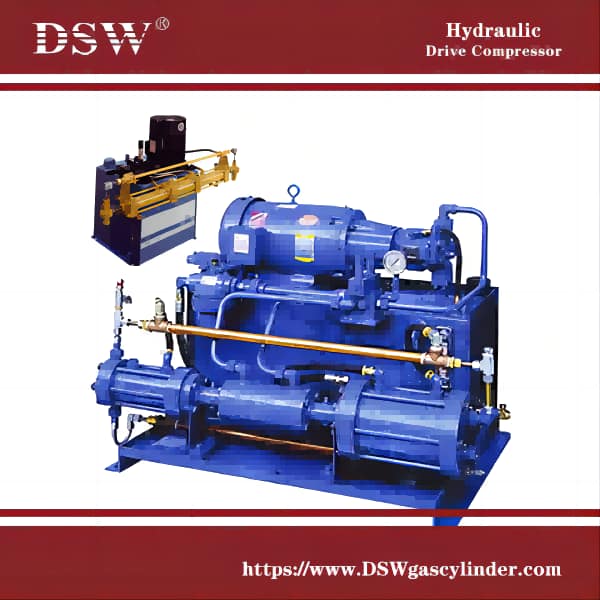

Hydraulic Drive Air Compressor
The hydraulic drive air compressor, or liquid drive compressor, is widely used in hydrogen applications.
DSW offers a variety of hydraulic driven air compressors at competitive prices to meet your compressed air needs worldwide.
It is extensively installed globally in fixed and mobile gas stations, industrial and manufacturing sites, research and development facilities, and offshore applications.
Standard models are rated for 10-100 MPa discharge pressures and 2-40 kW motor capacities.
Key Features:
- Customization: Compressors can be tailored for specific pressures, capacities, and applications.
- Oil-Free Operation: Utilizes a non-lubricating gas piston.
- Isolation Mechanism: The entire stroke distance block isolates the hydraulic drive from the cylinder.
- Inlet Pressure Range: Handling an extensive inlet pressure range without needing an inlet pressure regulator.
- Structural Simplicity: Designed with a simple structure, suitable for high-pressure applications.
- Efficiency: High cylinder volume efficiency.
- Temperature Control: A water-cooled cylinder reduces operating temperature and extends the life of the packing.
| Model No. | Cooling Water Quantity (t/h) | Volume Flow (Nm3/h) | Nominal Inlet Pressure (MPa G) | Outlet Pressure (MPa G) | Power (kW) | External Dimension (L×W×H) mm | Weight (t) |
| YHS1-10/4-16 | 0.5 | 10 | 0.4 | 1.5 | 2.2 | 1850×1600×1200 | 0.85 |
| YHS1-15/15-20 | 0.8 | 15 | 1.5 | 2.2 | 2.2 | 1850×1600×1200 | 0.85 |
| YHS1-20/8-25 | 0.8 | 20 | 1.6 | 3 | 3 | 1850×1600×1200 | 1 |
| YHS1-8/50-350 | 0.5 | 8 | 2 | 5.5 | 5.5 | 2000×1900×1500 | 1.75 |
| YHS1-5/0.5-10 | 0.3 | 5 | 0.05 | 2.2 | 2.2 | 1850×1600×1200 | 0.85 |
| YHS1-5/1-200 | 0.5 | 5 | 0.1 | 20 | 2.2 | 2100×2000×1500 | 1.5 |
| YHS1-5/5-80 | 0.3 | 5 | 0.5 | 2.2 | 2.2 | 1850×1600×1200 | 0.9 |
| YHS1-5/7-135 | 0.3 | 5 | 0.7 | 2.2 | 2.2 | 2100×2000×1500 | 2.5 |
| YHS1-5/5-20 | 0.3 | 5 | 0.5 | 2.2 | 2.2 | 1850×1600×1200 | 1.2 |
| YHS1-30/5-10 | 0.7 | 30 | 0.5 | 3 | 3 | 2350×2100×1600 | 2 |
| YHS1-10/0.5-8 | 0.5 | 10 | 0.05 | 3 | 3 | 2100×2000×1500 | 2 |
| YHS1-20/5-25 | 0.6 | 20 | 0.5 | 2.5 | 3 | 2100×2000×1500 | 2.15 |
| YHS1-20/5-10 | 0.6 | 20 | 0.5 | 4 | 4 | 2100×2000×1500 | 2 |
| YHS1-30/7-30 | 0.6 | 30 | 0.7 | 4 | 4 | 2250×2100×1500 | 2.3 |
| YHS1-15/5-30 | 0.8 | 15 | 0.5 | 4 | 4 | 2100×2000×1500 | 2 |
| YHS1-50/10-25 | 1.2 | 50 | 1 | 5.5 | 5.5 | 2350×2100×1600 | 2.5 |
| YHS1-20/17-200 | 1 | 20 | 1.7 | 7.5 | 7.5 | 2450×2200×1650 | 3.1 |
| YHS1-40/47-53 | 2 | 40 | 4.7 | 7.5 | 7.5 | 2000×1900×1500 | 1.85 |
| YHS1-40/4-35 | 1.5 | 40 | 0.4 | 3.5 | 11 | 2200×2200×1500 | 2 |
| YHS1-20/0.5-10 | 1.5 | 20 | 0.05 | 1 | 11 | 2350×2100×1600 | 2.2 |
| YHS1-30/1-13 | 0.8 | 30 | 0.1 | 1.3 | 11 | 2200×2200×1500 | 2.3 |
| YHS1-100/13-20 | 1.2 | 100 | 1.3 | 2 | 15 | 2450×2200×1650 | 2.5 |
Applications
Hydraulic drive compressors find applications across various industries and scenarios where compressed air is essential for operations. Some common applications include:
- Offshore Platforms: Used for providing compressed air on offshore oil and gas platforms where space and safety considerations are critical.
- Industrial Manufacturing: Essential in industrial settings for powering pneumatic tools, controlling processes, and operating machinery that require compressed air.
- Mobile Gas Stations: Deployed in mobile gas stations for tyre inflation and minor vehicle maintenance.
- Research and Development Facilities: Utilized in laboratories and research facilities for experiments, testing, and pneumatic systems.
- High-Pressure Gas Cylinders: Used to fill high-pressure gas cylinders for various applications, including medical and industrial gases.
