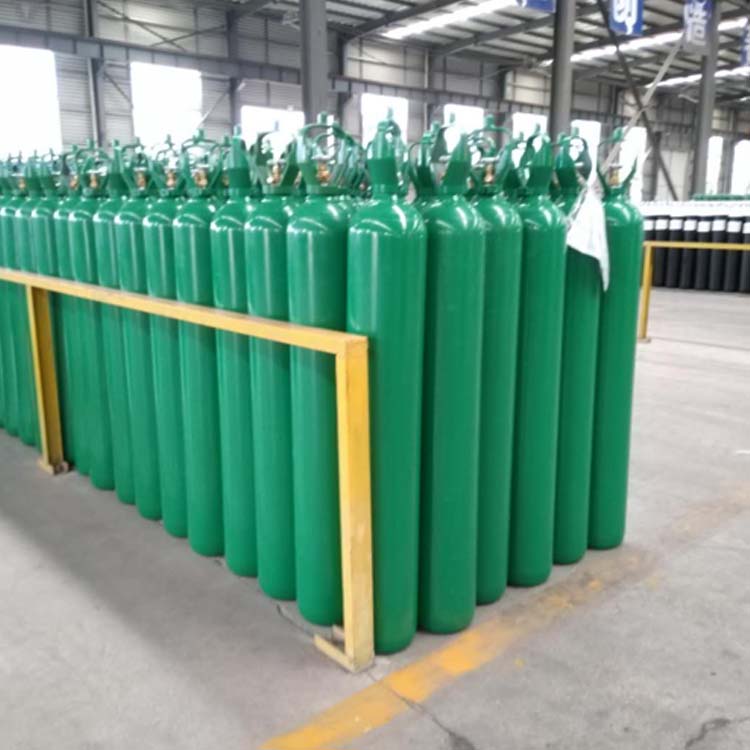

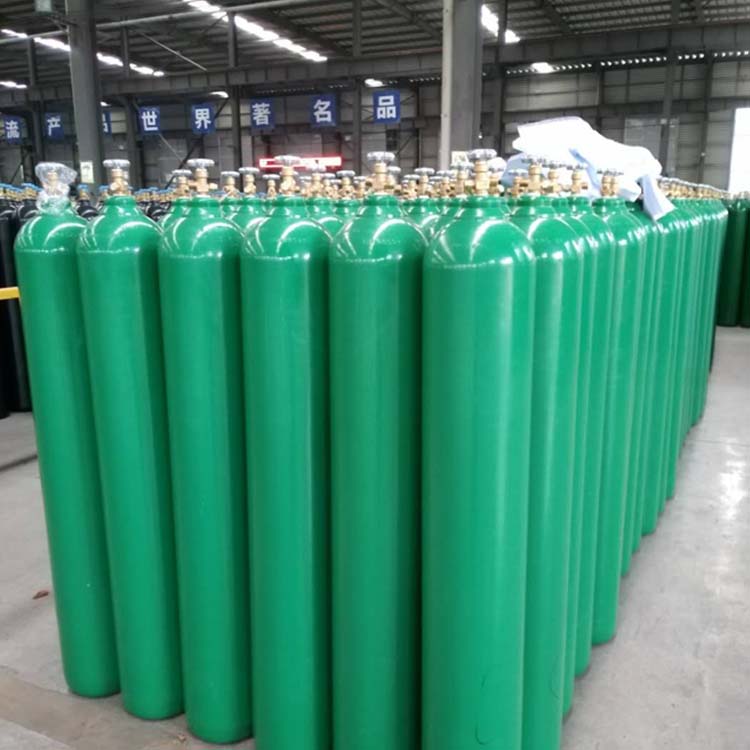

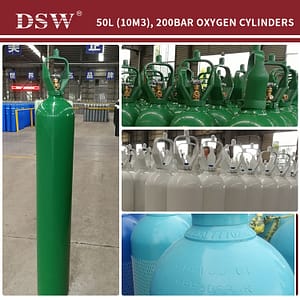

Oxygen Gas Cylinder with Tulip Cap
At DSW, a leading gas cylinder manufacturer in China, we specialize in producing high-quality Medical Oxygen Gas Cylinders with Tulip Caps for international markets.
Our cylinders are crafted precisely to meet global standards such as ISO9809-1, ensuring safety, durability, and performance.
These cylinders are ideal for the medical sector and have been widely adopted in countries such as Peru, Ecuador, and Bolivia.
The Significance of Tulip Caps

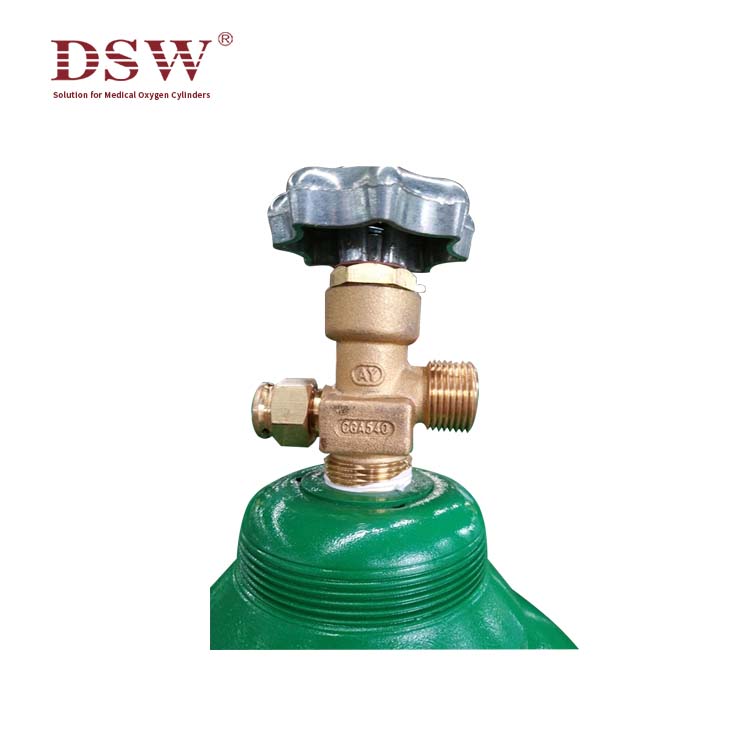

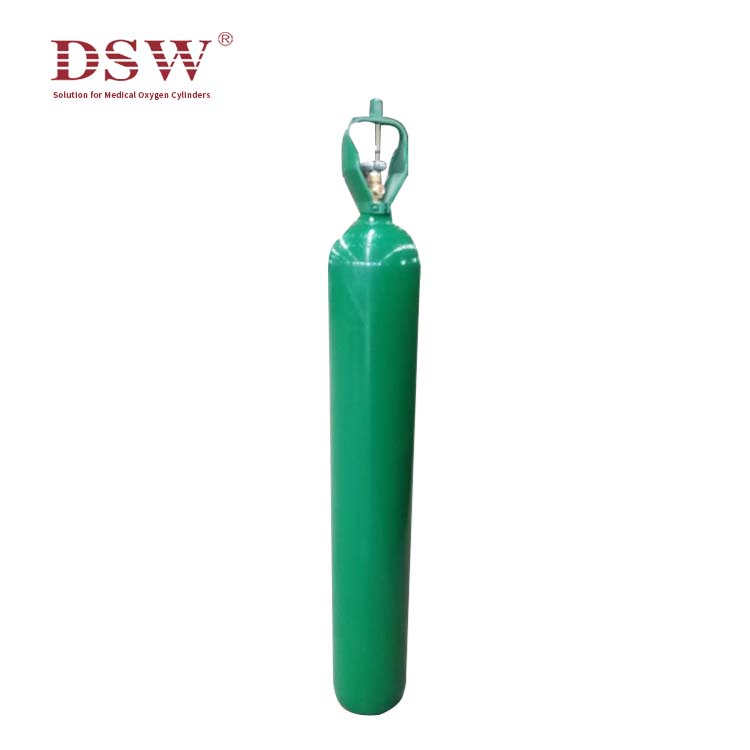

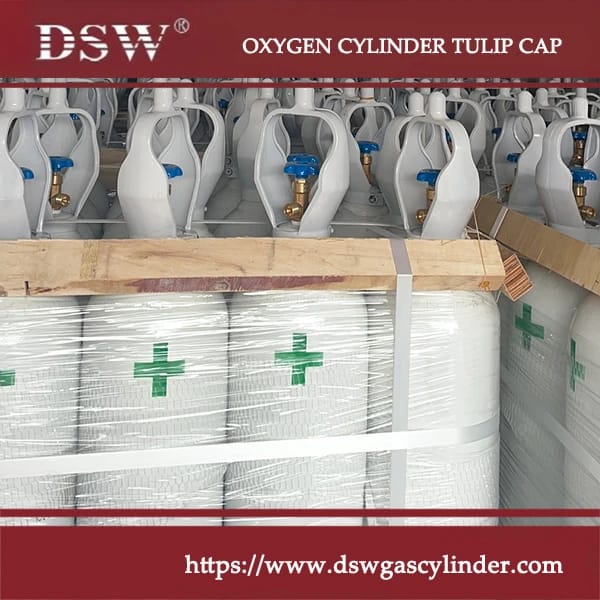

The tulip cap is a key feature of our medical gas cylinders. It provides enhanced protection for cylinder valves during transportation and storage. The cap’s ergonomic design simplifies handling while safeguarding critical components, ensuring the reliability and safety demanded in medical applications.
Technical Specifications
Our Medical Oxygen Gas Cylinders are available in various sizes and configurations, tailored to diverse operational needs. Below are the key specifications:
| Specification | Value |
| Type | Gas Bottle |
| Outside Diameter (mm) | 89-267 |
| Water Capacity (L) | 2-80 |
| Height (mm) | 430-1815 |
| Working Pressure (Bar) | 150-300 |
| With Cap Height (mm) | 490-1900 |
| Test Pressure (Bar) | 250-450 |
| Weight (kg) | 3.4-80 |
| Design Wall Thickness (mm) | 1.9-6.0 |
| Material | 37Mn, 34CrMo4 |
| Storage Gas (M³) | 0.3-15 |
Versatility in Application
Our tulip cap oxygen cylinders are engineered for the safe storage and transportation of oxygen, catering to the critical demands of the medical industry. Key features include:
- High-Pressure Design: Our cylinders are suitable for high-demand environments, with working pressures up to 300 Bar and test pressures up to 450 Bar.
- Seamless Construction: Made from premium materials like 37Mn and 34CrMo4, ensuring robustness and leak-proof performance.
- Customizable Options: Choose from various colors, including green, black, white, blue, and yellow, to align with your branding or regulatory requirements.
Flexible Filling Medium
In addition to oxygen, our cylinders can store a range of gases, including:
- Air, Argon, Hydrogen, and Helium
- Nitrogen, Carbon Dioxide, and Specialty Gases
- Mix Gas for medical and industrial applications
