Liquid Argon Tanks
DSW, a leading manufacturer and supplier of cryogenic argon tanks in China, provides comprehensive storage solutions for liquid argon and other gases. Designed for industries that require high-purity liquid argon and secure, efficient storage, DSW’s offerings support large-scale applications with a range of tank sizes, pressure options, and transportation compatibility.
Liquid Argon Tanks, also known as liquid argon storage vessels, are specially designed containers for storing and transporting liquid argon at extremely low temperatures.
Liquid argon is a liquefied gas with a standard boiling point below –130°F (–90°C).
Liquid argon has a boiling point of –303°F (–186°C).
The temperature difference between the product and the surrounding environment, even in winter, is substantial. Keeping this surrounding heat from the product requires special equipment to store and handle cryogenic liquids.

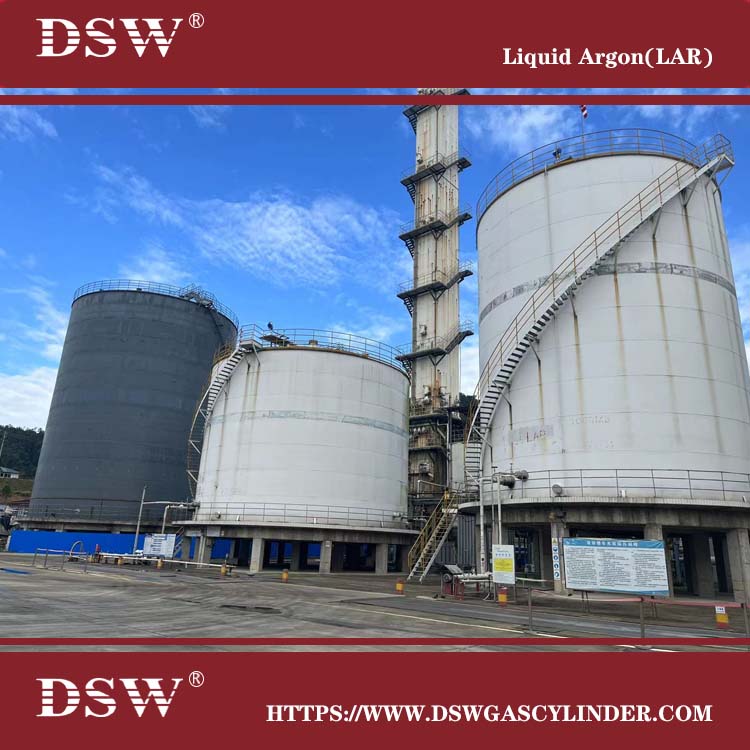

Air separation plants produce argon through the continuous cryogenic distillation of atmospheric air. The cryogenic liquid is recovered from the argon.
Cryogenic Argon Tanks: Essential for Liquid Argon Storage
DSW provides high-quality liquid argon tanks or cylinders for cryogenic storage of liquid gases, including argon, carbon dioxide, nitrogen, oxygen, and helium.
The liquid argon tanks have capacities from 3,000 to > 100,000 litres and standardized working pressures of 18, 22, or 36 bar, respectively.
The 20-foot ISO framework-type tank container applies to Intermodal transportation, including marine, highway, and railroad transportation.
Features:
Insulation: Cryogenic argon tanks are equipped with advanced insulation systems, such as vacuum or multi-layered insulation, to minimize heat transfer and reduce evaporation rates, thereby preserving the liquid argon for extended periods.
Pressure-Building System: These tanks incorporate pressure-building systems that ensure a controlled pressure level inside the tank, allowing for a steady supply of liquid argon during usage.
Robust Construction: Lar tanks are constructed from durable materials, such as stainless steel or aluminium, to withstand the extremely low temperatures and pressures of storing cryogenic liquids.
Safety Features: These tanks are equipped with safety relief devices and pressure control valves to prevent overpressure situations and ensure safe operation.

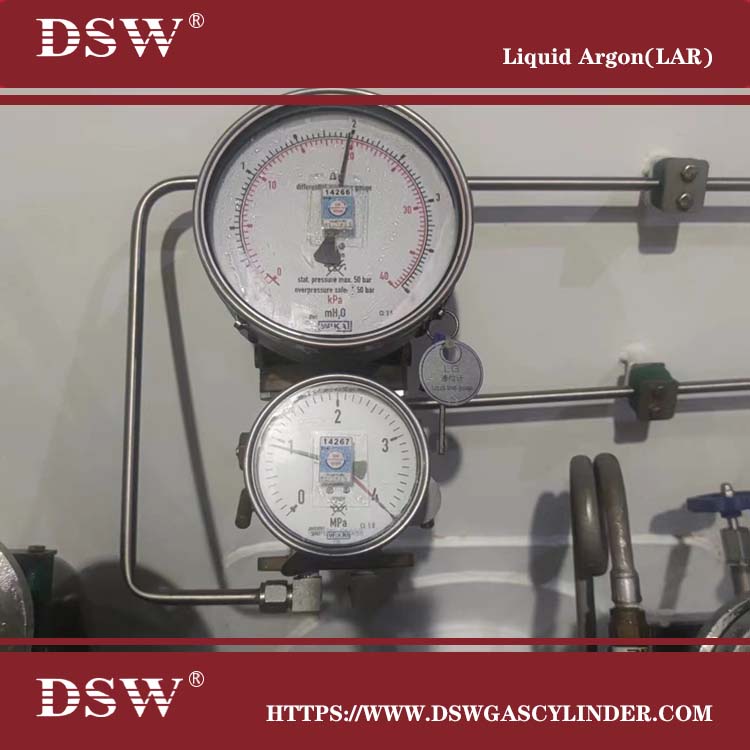

A typical system comprises a cryogenic tank, one or several vaporizers, and the necessary piping for filling and vaporizing. In principle, the cryogenic argon tank looks like a vacuum container. The cryogenic tank is designed to keep the heat from the inner vessel’s liquids. Vaporizers change liquid argon into gaseous form. A pressure control manifold can control the gas pressure fed into the process.

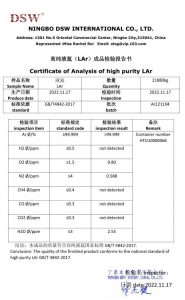

The Specfication of Argon
| PRODUCT NAME | PURITY | |
| Argon(Ar) | > 99.999% | |
| Liquid argon ( LAR) | > 99.999% | |
| Argon with a mixture of gas | ||
| Main Gas | Balance gas | Valve |
| Argon Gas | Helium: 1ppm-50% | CGA 580 |
| Argon Gas | Hydrogen: 1ppm-50% | CGA 350 |
| Argon Gas | Nitrogen: 1ppm-50% | CGA 580 |
Delivery of Bulk Argon Supply

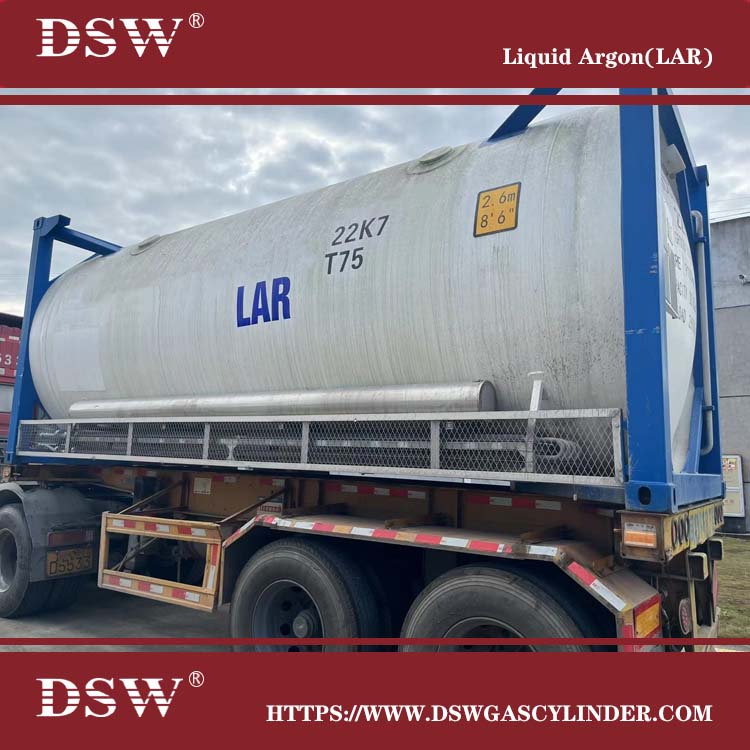

- The 20-foot ISO Lar tank container applies to Intermodal transportation. Marine, highway, and railroad transportation.
- With its overall dimensions conforming to ISO standards, the tank container is rated for up to nine high-stacking loads.
- DSW cryogenic liquid argon trailers deliver bulk liquid argon to large cryogenic bulk storage vessels or smaller MicroBulk tanks at customer sites.
- Bulk argon delivery is also an option when argon demand is high – for both gas and liquid argon.
- We also offer various choices for container sizes, types, and purity grades, including bulk argon delivery.

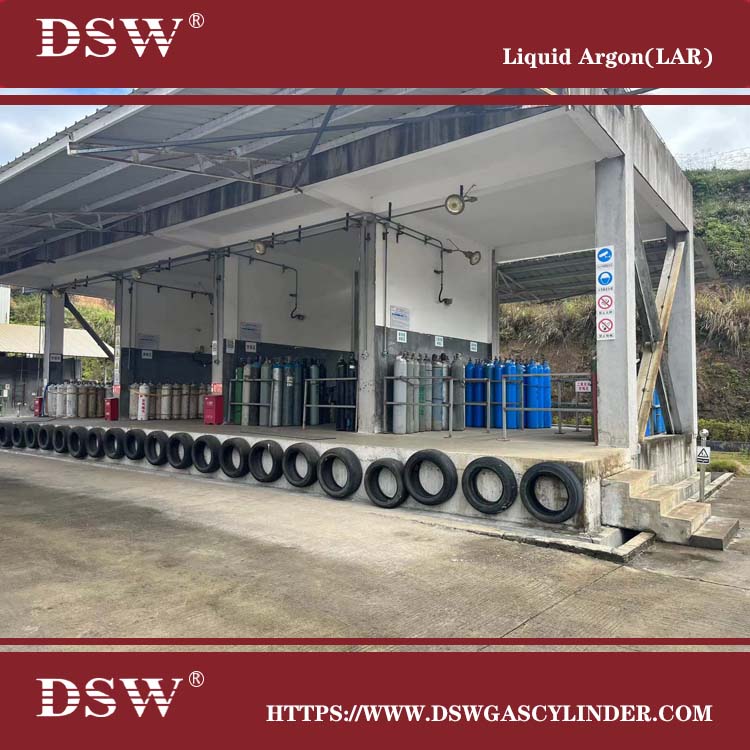

- Pre-filled liquid argon cylinders are a versatile supply option for minor requirements. Argon can be dispensed from liquid cylinders in either gas or liquid phase.
Packaging Options for LAR
DSW supplies liquid argon in various packaging options, providing solutions tailored to diverse industrial and scientific applications.
From high-pressure gas cylinders to large-volume tanks, DSW’s range accommodates projects of all scales, ensuring efficient and reliable argon delivery.
