Nitrous Oxide Plant,N2O Production Line

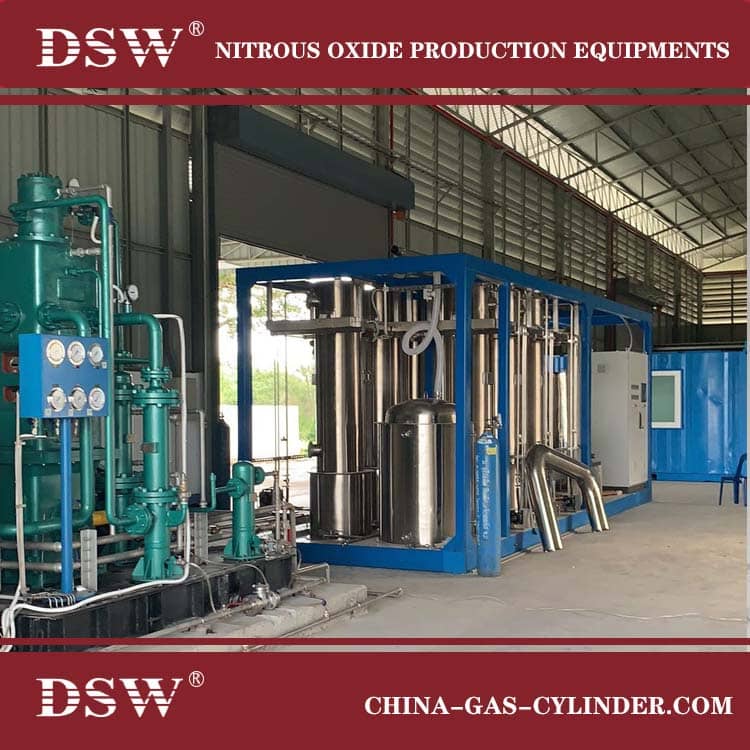

Set up Nitrous Oxide Plant

DSW is one of the leading manufacturers and exporters of nitrous oxide plants, who set up Nitrous Oxide Plant for customers worldwide.
We provide a comprehensive skid package for nitrous oxide plants, designed for efficient and safe production.
The skid mounted package includes all essential components pre-assembled on a single platform, ensuring ease of installation, operation, and maintenance.

Key features of the N2O Skid Mounted Package

Ammonia Cracker:
Efficiently decomposes ammonia into nitrogen and hydrogen.
Equipped with high-quality catalysts for optimal performance.

Gas Purification System:
Removes impurities and by-products from the gas mixture.
Includes scrubbers, filters, and absorption units.

Compression System:
Compresses purified nitrous oxide to the required pressure.
Utilizes advanced compressors for reliable and efficient operation.

Storage and Filling System:
Safely stores compressed nitrous oxide in high-pressure cylinders.
Features automated filling mechanisms to ensure accuracy and safety.

Control Panel:
Centralized control for monitoring and managing the entire plant.
Equipped with user-friendly interfaces and safety alarms.

Safety Systems:
Incorporates pressure relief valves, emergency shutdown systems, and leak detection sensors.
Designed to ensure safe and continuous operation.

Separation from adipic acid off the gas
About separation from adipic acid off the gas. It’s used because hexanedioic acid process units by-product nitrous oxide; general adipic acid per ton can produce about 0.28 tons of nitrous oxide. Nitrous oxide content is nearly 50% (wt) and recycles value well in tail gas.
The method for preparing high-purity N20 production using adipic acid production tail gas using the following steps：
(1) absorption pretreatment process: adipic acid produces tail gas and enters the absorption tower; the absorbing liquid at the bottom of the building will absorb most of the CO2、NO2, and H2O.
(2) cryogenic rectification process： the airflow from adsorbent equipment enters the low-temperature fractionating tower. High-purity nitrous oxide is obtained from the low-temperature purifying method column.
(https://patents.google.com/patent/CN105110304B/en)

Thermal decomposition of ammonium nitrate (NH4NO3)
Nitrous oxide is produced by careful heating of ammonium nitrate at about 250℃, which decomposes into nitrous oxide and water vapor：
NH4NO3 → 2 H2O + N2O
Ammonium Nitrate is decomposed in the Melters to give a mixture of Nitrous Oxide & superheated steam. At the same time, impurities are produced, including Ammonium Nitrate fumes, Nitrogen & other oxides of Nitrogen. The moisture & contaminants are removed by scrubbing with water, caustic soda, and sulphuric acid. Nitrogen present in traces is removed by bleeding from the top of storage vessels where Nitrous Oxide is stored after compression by a compressor.
WHO, FDA and GB standards approve nitrous oxide from this method for food additives.

For food-grade nitrous oxide for sale, including whipped cream chargers, please confirm that the thermal decomposition of ammonium nitrate produces nitrous oxide.
Nitrous oxide produced from this method is usually used in the electronic industry. It’s not approved for food grade. Food using nitrous oxide is only produced by the last process.

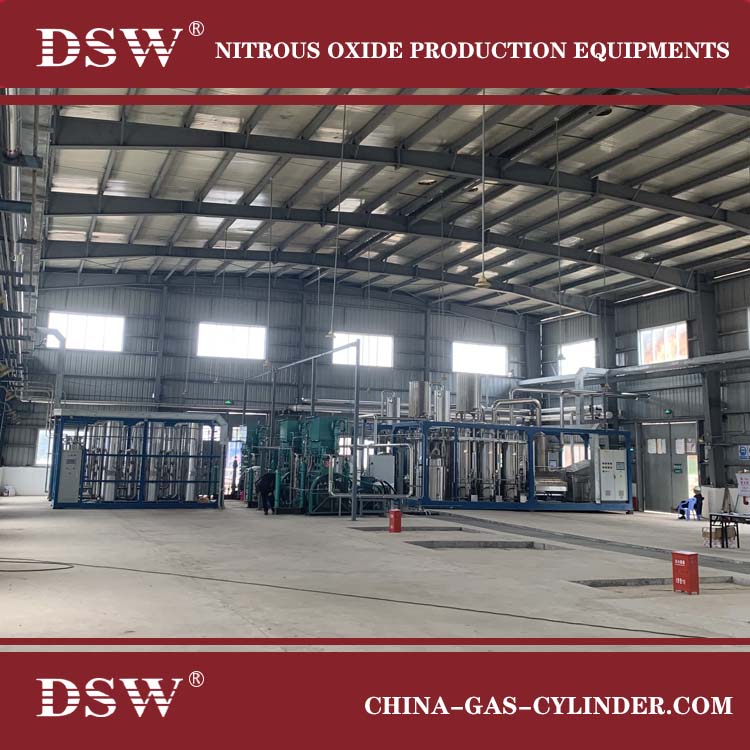

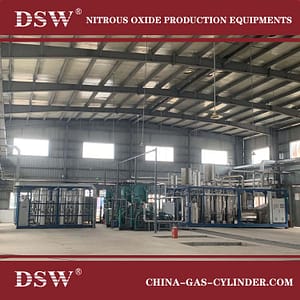

Nitrous Oxide Factory

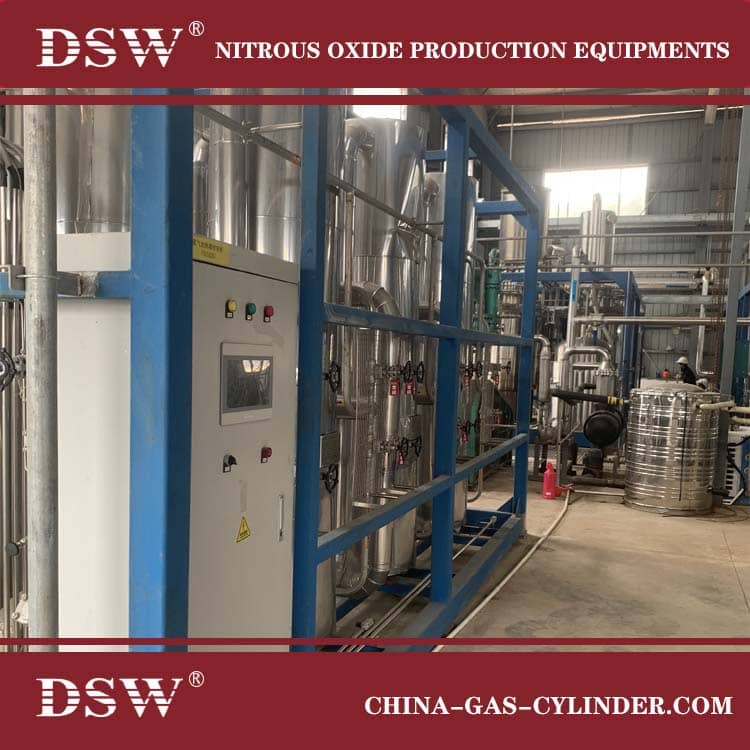

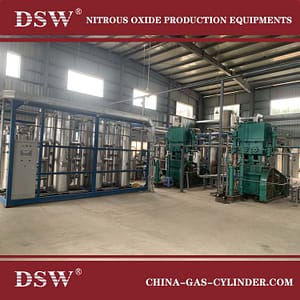

Nitrous Oxide Plant

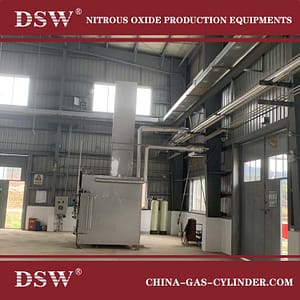

N20 Plant Manufacturer

Benefits of Choosing DSW for Nitrous Oxide Plants

Expertise and Experience: DSW has a proven track record in designing and manufacturing high-quality nitrous oxide plants.
Global Reach: With a worldwide customer base, DSW offers tailored solutions to meet diverse industrial and medical requirements.
Comprehensive Support: From initial consultation to installation and maintenance, DSW provides end-to-end support to ensure optimal plant performance.
